Module 4: Volumetric Analysis Using Jupyter Notebook

See the HBCD Data Release Docs MRI Processing & Derivatives Guide for information on structural and functional MRI derivatives.

View Code on GitHub

The size of structural volumes is potentially meaningful with respect to brain function. Therefore, one fundamental question underlying ABCD and HBCD studies are the developmental trajectories of brain regions. Providing brain charts is an incredibly important tool for tracking developmental growth and providing normative models for biomarker discovery (Bethlehem et. al., Nature, 2022 ). One key gap in brain charts is the lack of a consistent pipeline for processing all the data -- trajectories may be contaminated by batch effects from differences in pipeline processing. In addition, some ages in current brain charts may be limited due to small sample sizes. BIBSnet provides volumetric outputs for the HBCD dataset. Here, we will load BIBSnet data and measure the trajectory of volumetric data across development filling the gap in infant development. We will leverage ipython jupyter notebooks to perform this analysis.

Module Objectives

  1. Gain familiarity with ipython jupyter notebooks
  2. Explore volumetric outputs from BIBSnet
  3. Develop longitudinal models to measure volume development from HBCD data

Walkthrough

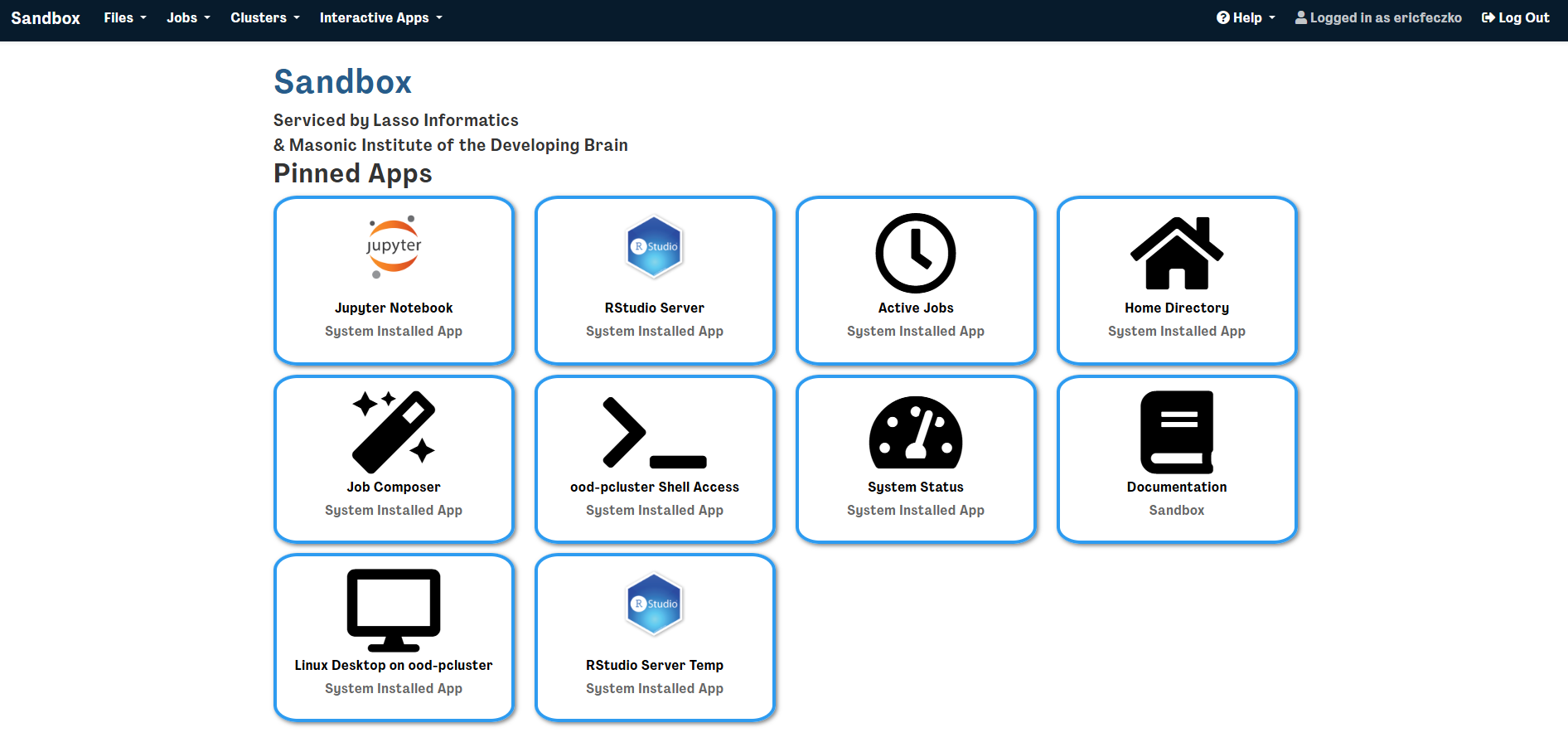

  1. Return to the sandbox dashboard and select the jupyter notebook session

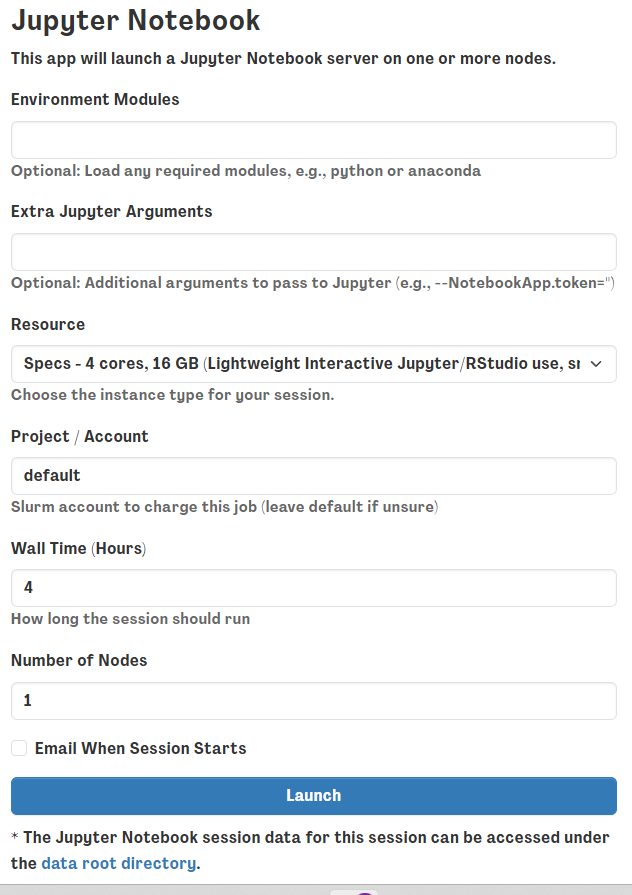

  2. This will open a window requesting optional arguments or modules to load. For this example we won’t need anything extra so just hit the launch button below

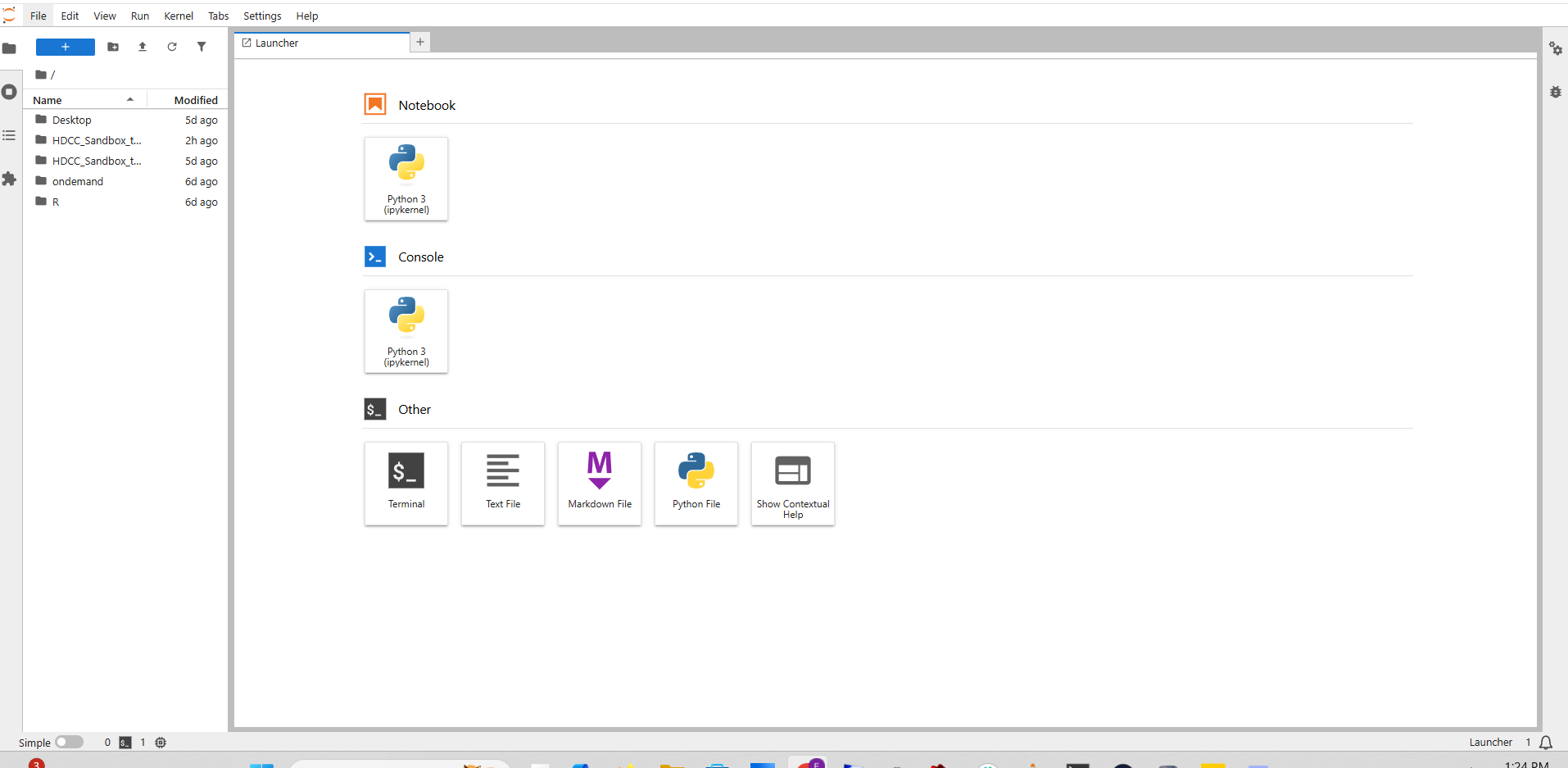

  3. This will open up a jupyter notebook launcher with a navigation panel on the left hand side

  4. If you enter the HDCC_Sandbox_tutorials folder on the left hand side, you should see the examples folder

  5. Open the examples folder and you’ll find the “BIBSnet volumetric analysis” folder. Open that to find an i python notebook, and click on that to start the tutorial.

Code Highlights

The ipython notebook contains lots of examples for any researcher to customize to answer your questions your way! Here we highlight a few simple snippets that can be easily customized.

Choosing your tabulated input data

You can choose what tabulated data file you would like to load by editing code block 3 in the ipython notebook, reprinted below. This can be done to select not just imaging measurees but clinical or cognitive measures as well. The code below will take the img_bibsnet_space-T1w_desc-aseg_volumes.tsv and load it into a data frame in the jupyter notebook.

df = pd.read_csv('/shared/hackathon/hbcd/v2.0/hbcd/rawdata/phenotype/img_bibsnet_space-T1w_desc-aseg_volumes.tsv', sep='\t')
df.head

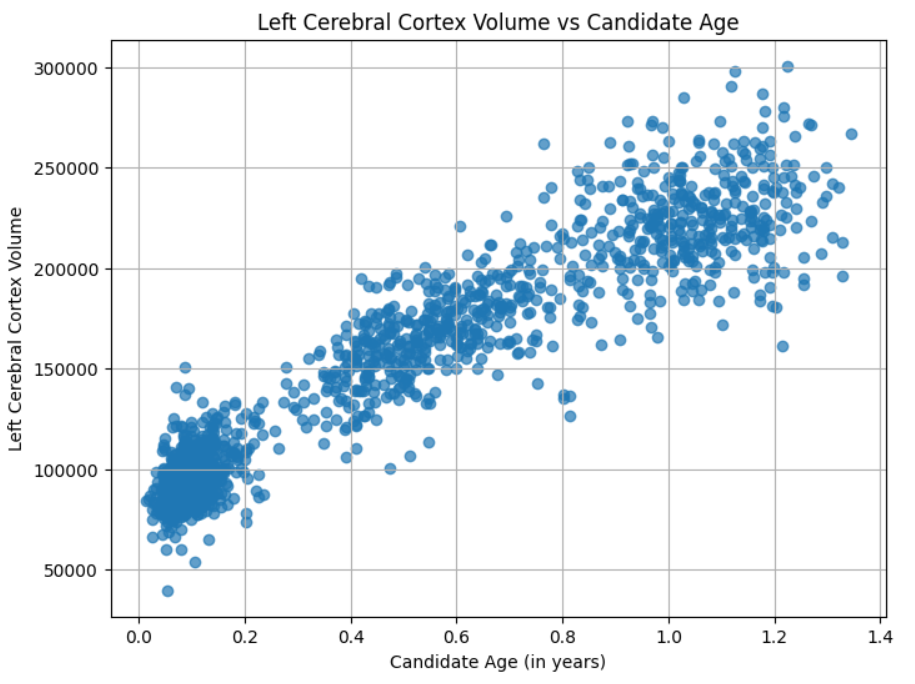

How to make brain growth scatter plots

Visualizing your data is key to answering your study questions and communicating those answers. Here, we can make simple brain growth scatter plots using code block 4. The code for making this plot is reprinted below. The figure size can be adjusted by changing figsize. You can select another measure for the X axis by changing img_bibsnet_space-T1w_desc-aseg_volumes_candidate_age to another variable in the data frame. Similarly, you can select another measure for the Y axis by changing img_bibsnet_space-T1w_desc-aseg_volumes_Left-Cerebral-Cortex. alpha controls how transparent the figure will be. plt.xlabel, plt.ylabel, plt.title all edit the labels for the X axis, Y axis, and title. plt.grid(True) maintains grid lines, while plt.show() displays the figure. More complex figures are available in the python notebook that one can use for flashier displays!

# Plot
plt.figure(figsize=(8,6))
plt.scatter(
    df['img_bibsnet_space-T1w_desc-aseg_volumes_candidate_age'],
    df['img_bibsnet_space-T1w_desc-aseg_volumes_Left-Cerebral-Cortex'],
    alpha=0.7
)
plt.xlabel('Candidate Age (in years)')
plt.ylabel('Left Cerebral Cortex Volume')
plt.title('Left Cerebral Cortex Volume vs Candidate Age')
plt.grid(True)
plt.show()

Visualize Model Weights on Brain

Brain-based visualizations are a key component for inspecting and communicating neuroimaging findings and results. The final code block contains instructions to produce statistical maps on NIFTI (nii.gz) volumes. While that block is quite complex, there are several easy ways for researchers to customize the code to answer their question their way. The template data can be changed to other templates by changing the src variable. You can specify where you want your outputs located by changning the out_dir variable. Changing the age col, img_bibsnet_space-T1w_desc-aseg_volumes_candidate_age changes what is plotted on the X axis, while changing the prefix , img_bibsnet_space-T1w_desc-aseg_volumes_ will enable you to choose whatever tabulated data you want to use. Please keep in mind that the corresponding outputs produced in outputs may require corresponding changes to the src templates as well.

# PREPARE DATA
# Define source and output data file paths provided in repo
src = "data/src"
out_dir = "data/outputs"

# Define age column and ROI columns to loop through from HBCD data (exclude age columns and Unknown ROI)
# NOTE! Can use T1w or T2w results here
age_col='img_bibsnet_space-T1w_desc-aseg_volumes_candidate_age'
prefix='img_bibsnet_space-T1w_desc-aseg_volumes_'

Brain-Based Visualizations

Introduction

The output from this BIBSnet example contains a visualization of the growth curve fits on the brain as a brain volume .nii.gz (NIFTI) file. This walkthrough will take users through how to use the sandbox to visualize the statistical map on a template in MNI space.

Template files provided for visualization are sourced from the Baby Open Brains (BOBs) Repository - see details.

The following steps will take users through using workbench for visualizing statistical brain maps on brain volumes.

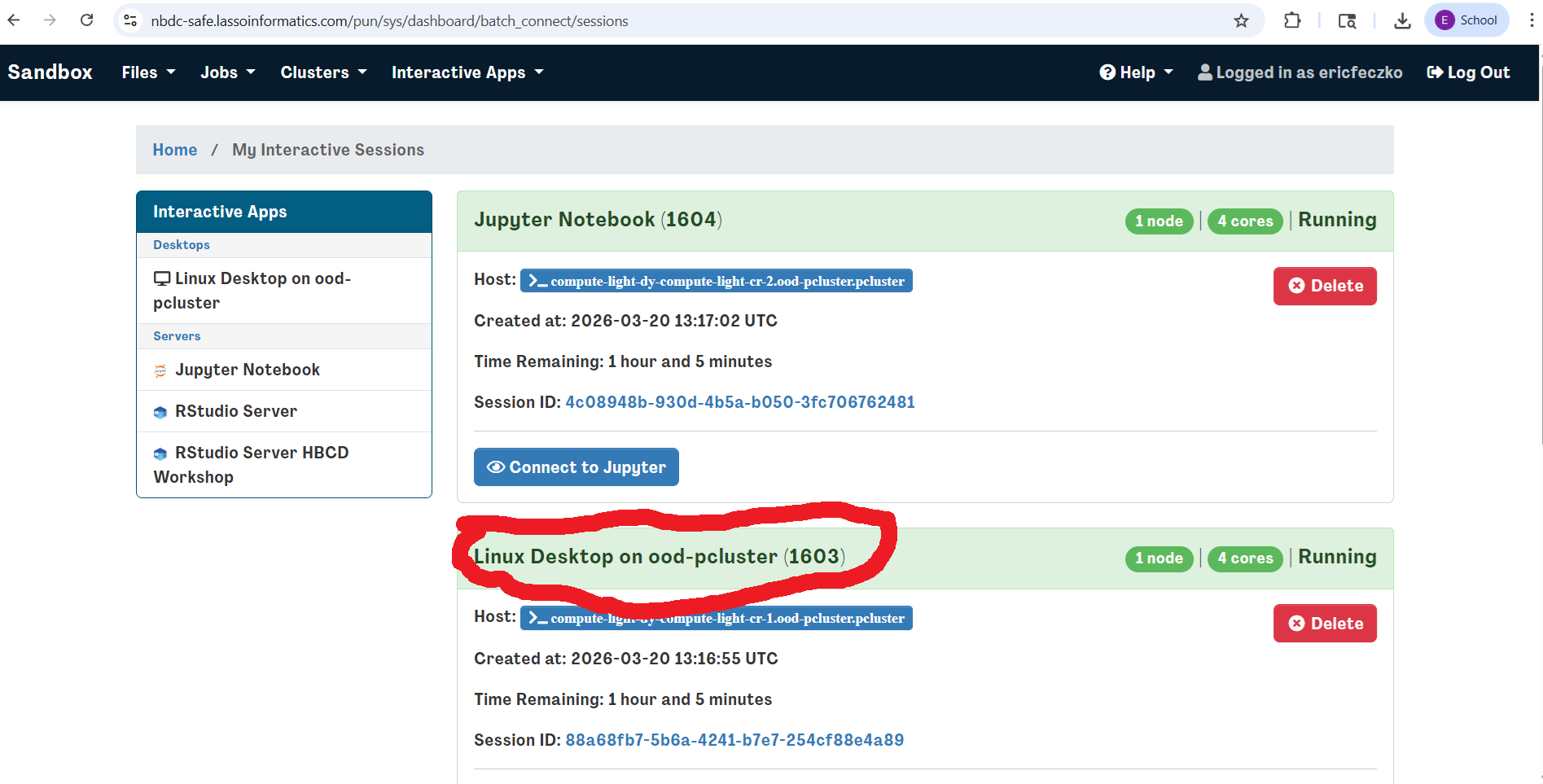

  1. First, we will return to the virtual desktop by selecting the active virtual desktop session.

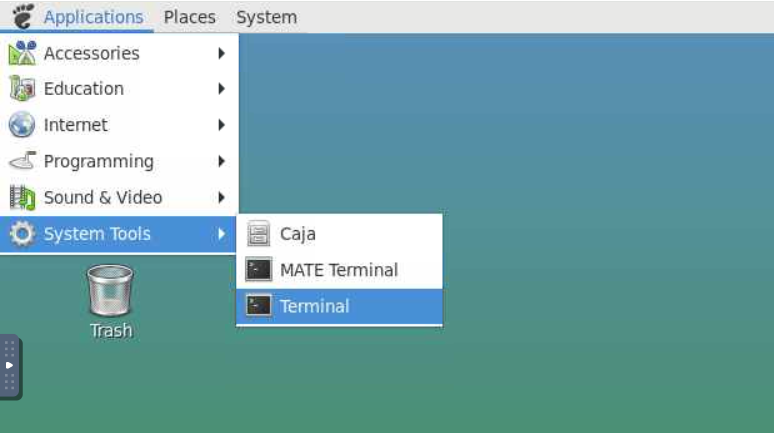

  1. We will then open a terminal. If you already have a terminal open feel free to use it.

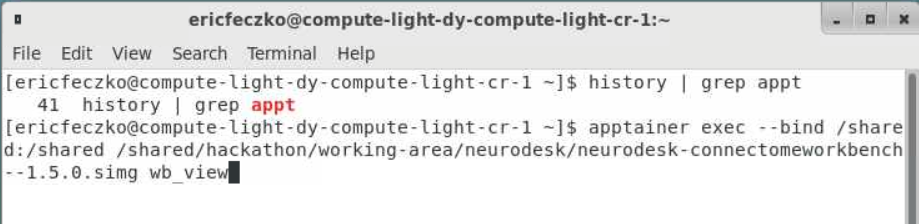

  1. From the terminal we will open workbench_view that runs inside an Apptainer container can be accessed using the following command:
apptainer exec --bind /shared:/shared /shared/hackathon/working-area/neurodesk/neurodesk-connectomeworkbench--1.5.0.simg wb_view
What is an Apptainer?

An Apptainer is a container that packages software, dependencies, and libraries together so that tools run the same way on any system. This allows us to run complex neuroimaging software without needing to install and configure it locally. In this case, the Apptainer contains Connectome Workbench and all required dependencies. Apptainers are commonly used in research computing and HPC environments to ensure reproducibility and simplify software setup.
See further documentation here: https://apptainer.org/docs/user/main/index.html

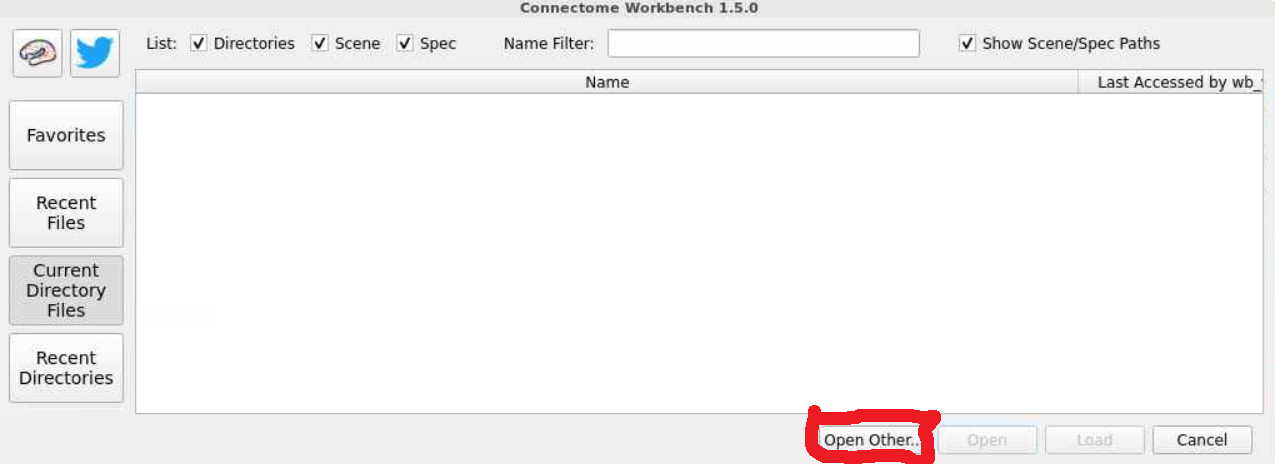

  1. This will open a workbench view window where we can open files. The left hand tab allows users to navigate to recently used files or their home directory. For now select the open other button on the lower-right-hand side.

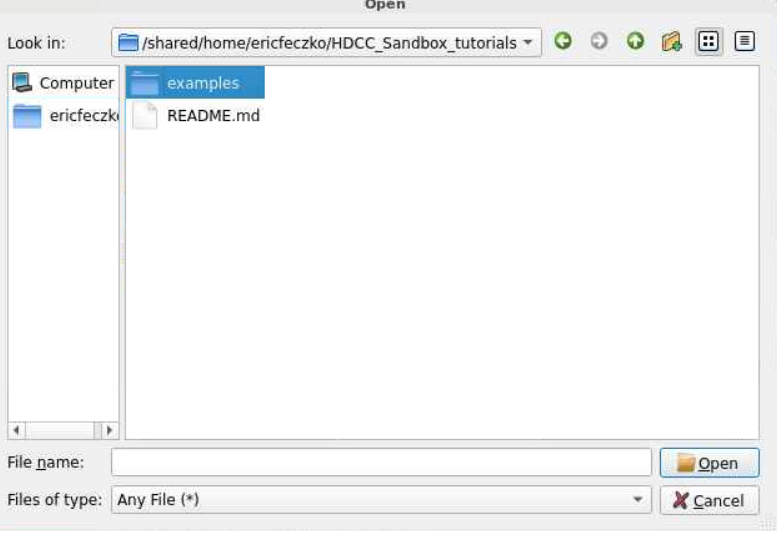

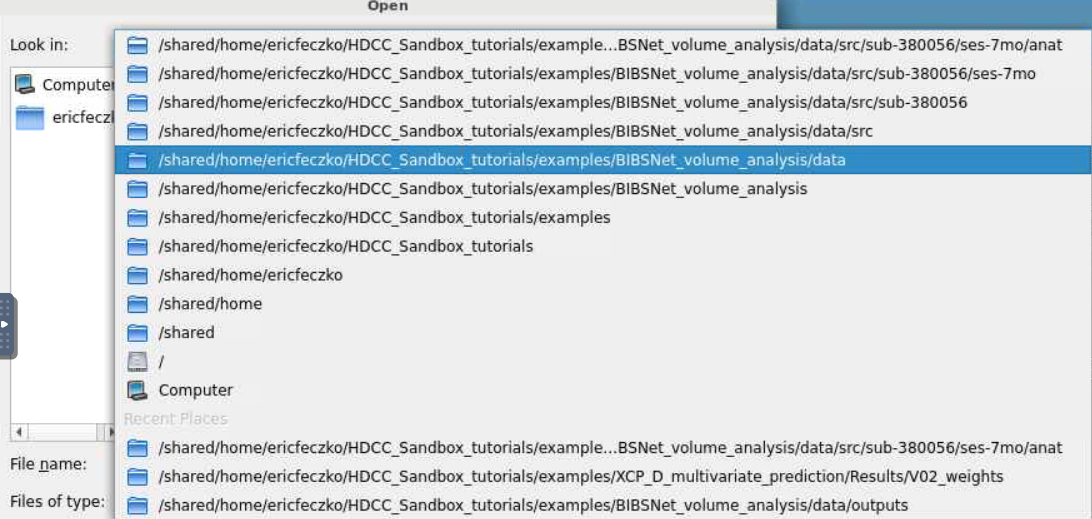

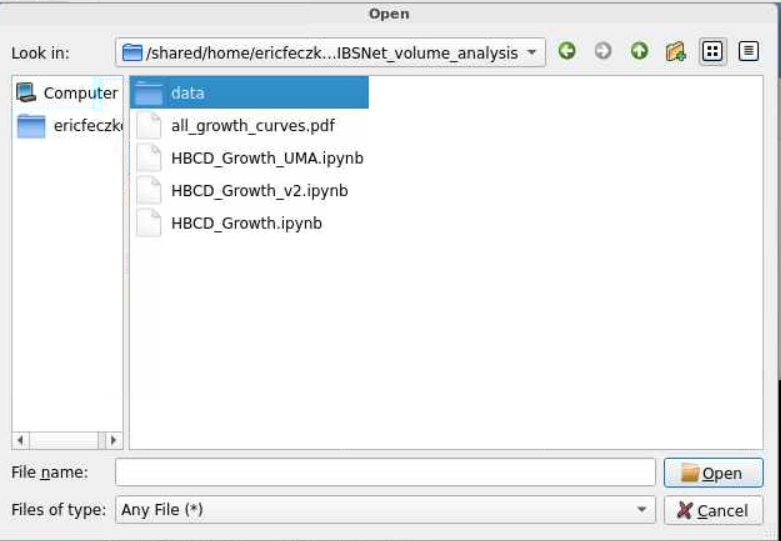

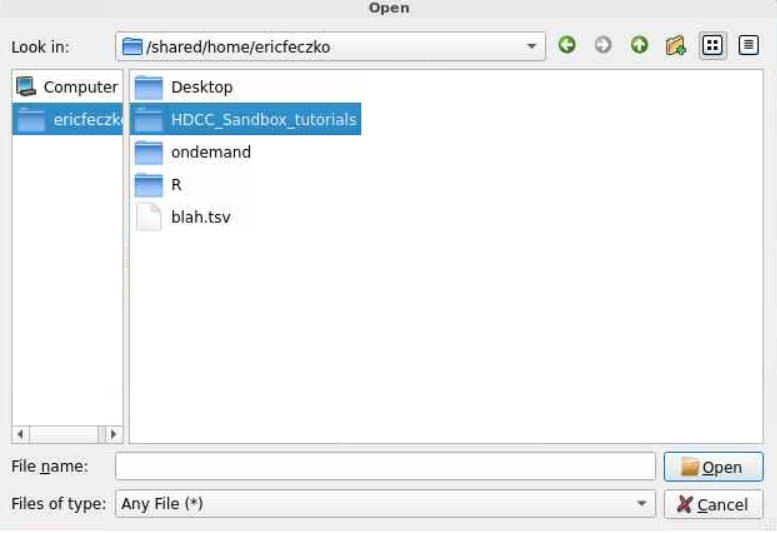

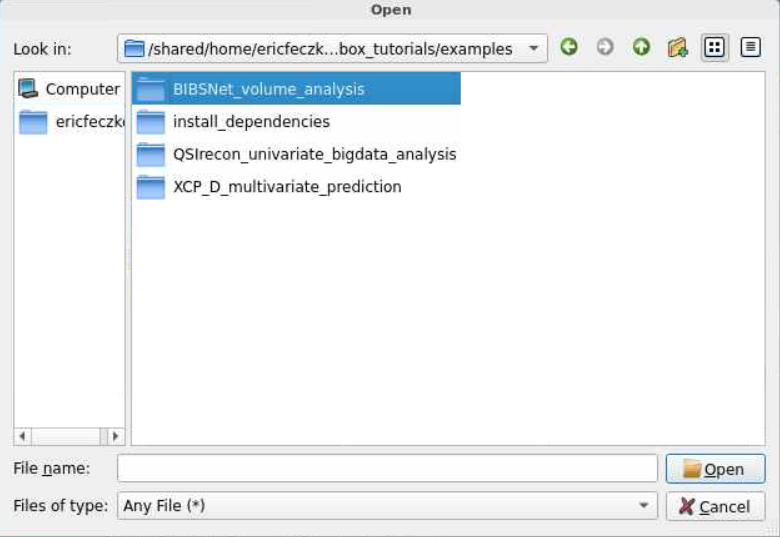

  1. For this module, the templates can be found inside the NBDC Sandbox Tutorial folder. Follow the pictures below to locate the final path to the BIBSnet module folder.

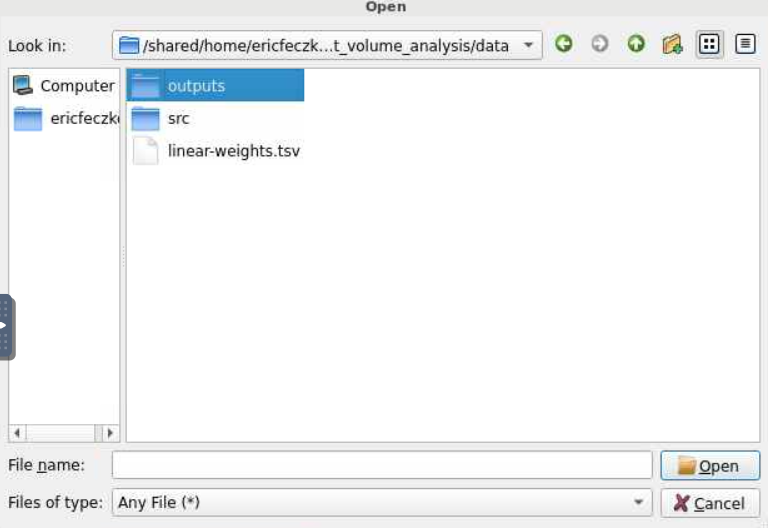

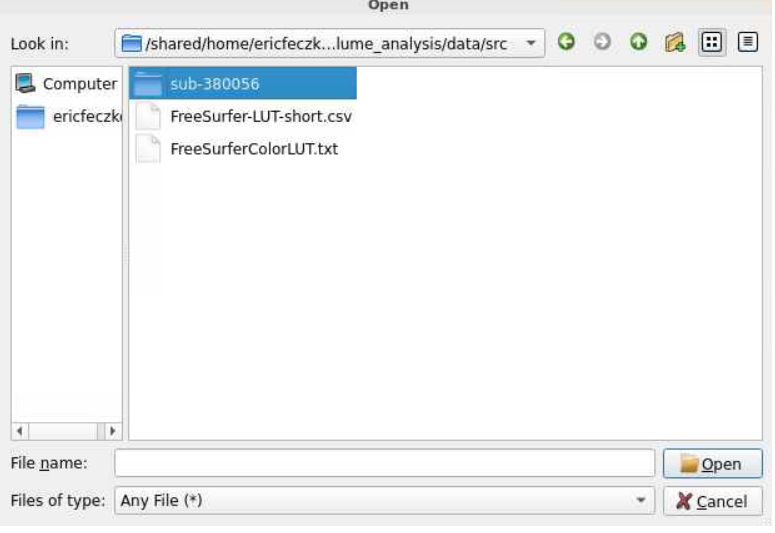

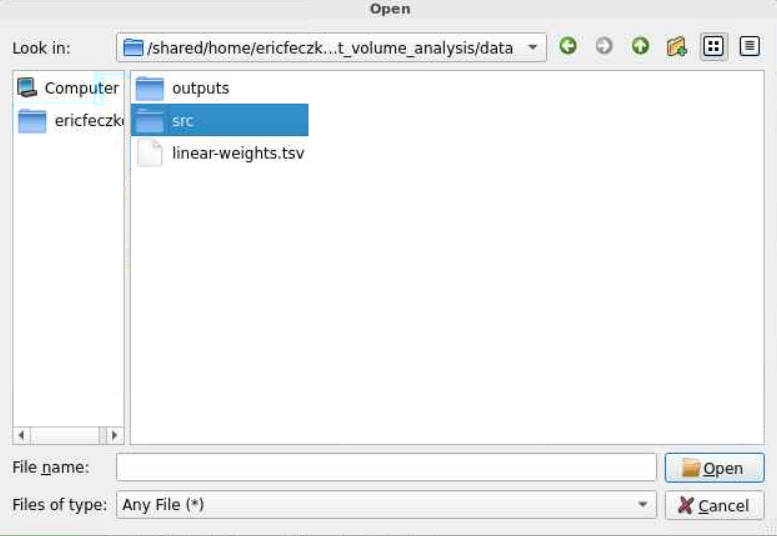

  1. The data folder contains the anatomical templates for viewing brain anatomy in the src folder. It also contains data visualizations, in the output folder, including a statistical map of the growth curve fits to each volumetric structure. For now let us select the subject directory in the src folder.

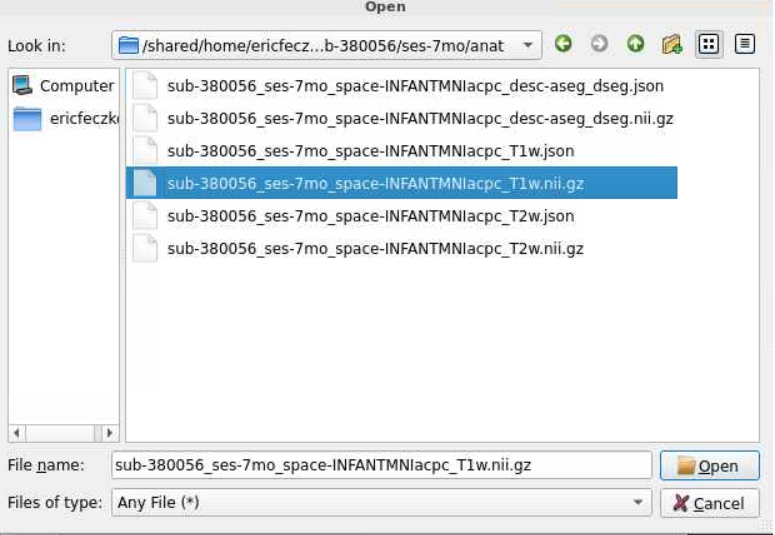

  1. An anatomical template in the same space as our statistical map is needed for viewing the outputs properly. Often misalignment between the anatomy and the stat map drives visualization issues. Here let us use the T1 for data visualization.

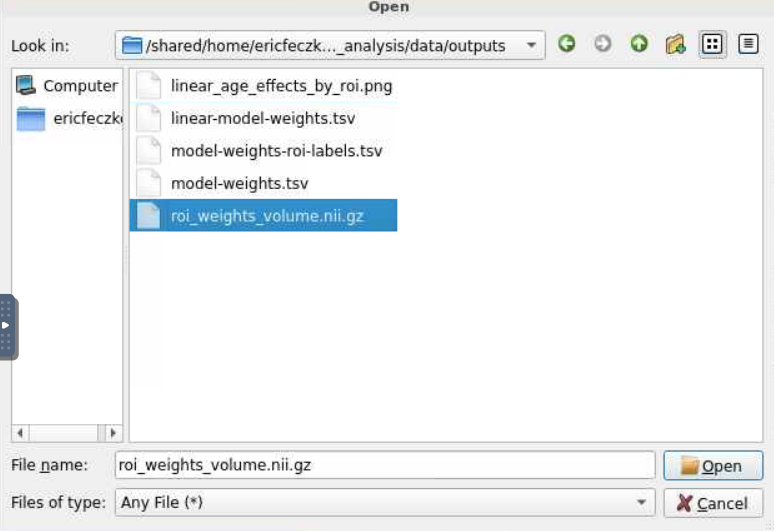

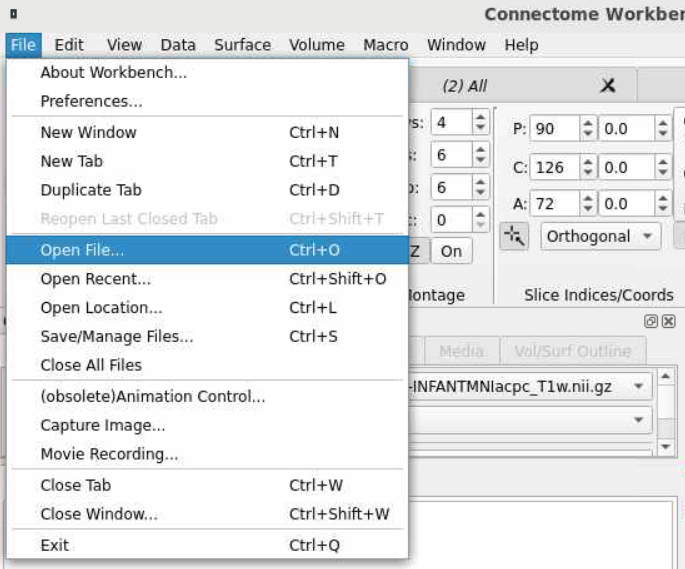

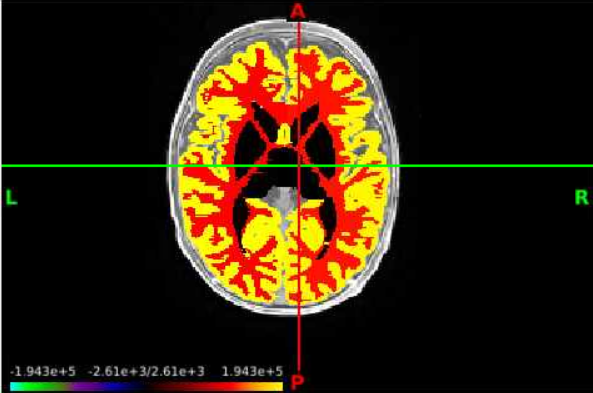

  1. This will load the anatomy and we can see the brain! Let us now load the statistical map. We will select open file from the file window, and then navigate back to the data folder. From there, let us select the outputs folder and choose the NIFTI (.nii.gz) file found within the outputs folder.

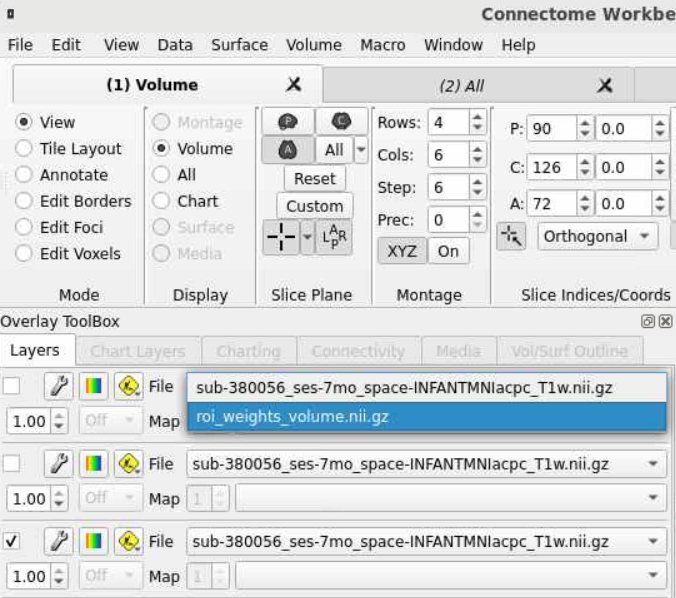

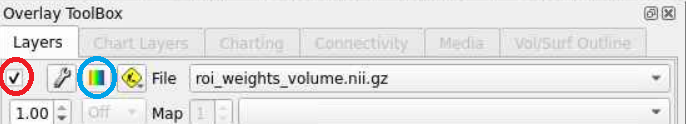

  1. We can now have the data loaded! However we still need to select a layer in the overlay toolbox to choose the statistical map itself. Next, we will need to select the radio button on the left (red circle) and the colorbar (blue circle) to make the map visible.

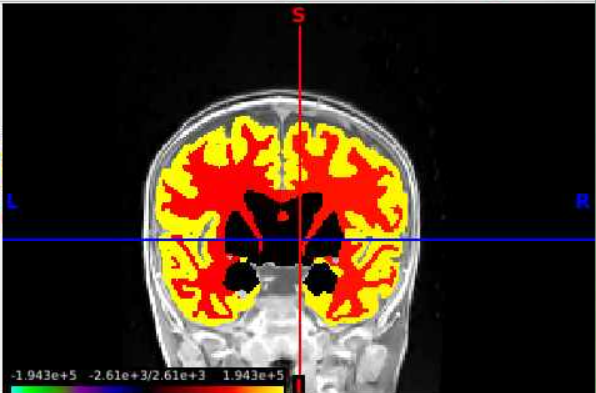

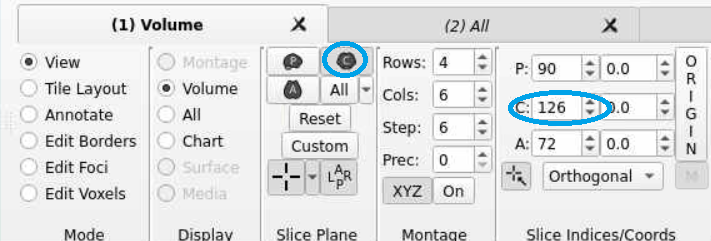

  1. Now we can navigate the brain and examine the statistical output for different structures! If we want to change the view or slice we can use the tools under the volume tab. We can select the orientation, such as coronal (red circle), to change our perspective. We can navigate different slices using the slice window (blue circle) for the corresponding orientation.

Conclusion

The example here allows us to build our own brain charts using HBCD data. Such brain charts mirror prior research, which has revolutionized brain behavior analysis (Bethlehem et al., 2022). In addition, we show how to produce brain visualizations of brain chart parameters for subsequent exploration, visualization, and publication.

Next Steps

The next section Diffusion Statistical Testing will show how to perform diffusion univariate statistical testing using QSIRecon pipeline outputs.
